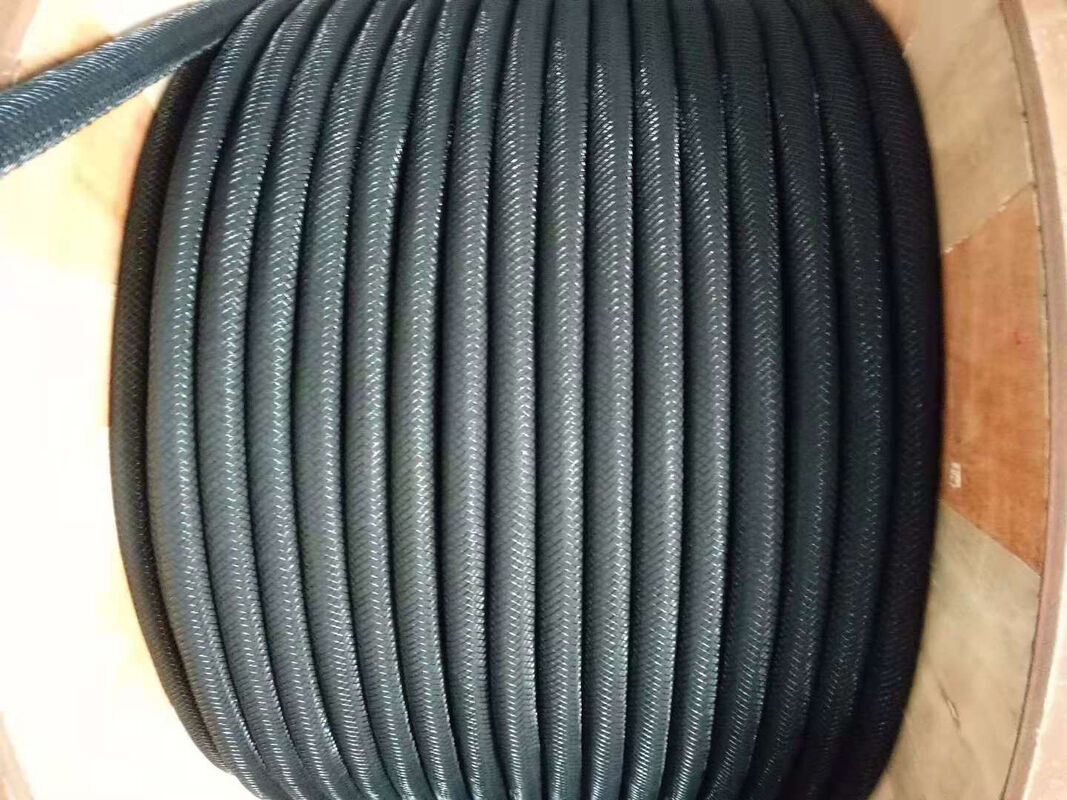

MMO Coated Titanium Ribbon Flexible Impressed Current Anode with 9.5mm Width and Iridium-Tantalum Mixed Metal Oxide Coating for 30 Years Design Life
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | HB |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-R-9.5-STF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 Meters |
|---|---|
| Price: | USD 15-50.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Coating Type: | Iridium-Tantalum Mixed Metal Oxide | Interstitial Space: | >= 75 Mm |
|---|---|---|---|
| Ribbon Dimensions: | 9.5 Mm (W) X 0.635 Mm (T) | Design Life: | >= 30 Years |
| Operating Voltage: | 12 V DC | Current Output: | <= 30 MA/m (sand Backfill) |
| Highlight: | MMO Ti Ribbon Tank Floor Anode,AST Floor Flexible ICCP Ribbon,Mixed Metal Oxide Floor CP Anode |
||
Product Description
This Mixed Metal Oxide (MMO) coated titanium ribbon flexible anode is engineered for impressed current cathodic protection (ICCP) systems in aboveground storage tank floors in refineries, terminals, and tank farms. Suitable for both new tank construction with double-bottom design and existing tank floor CP retrofit projects.
- 9.5mm ribbon width ideal for double-bottom tank floor CP retrofit installations with constrained interstitial spaces
- Flexible ribbon easily routed around tank floor obstacles including support columns, sumps, and drain nozzles
- Pre-terminated anode lead wire connections with factory-sealed waterproof junction for reliable electrical continuity
- Compact ribbon cross-section minimizes sand bed thickness requirements in new tank foundation construction
- Full compliance with API 651 cathodic protection of aboveground petroleum storage tanks requirements
| Parameter | Specification |
|---|---|
| Model | MMO-R-9.5-STF |
| Anode Type | MMO/Ti Ribbon Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B265 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide |
| Ribbon Dimensions | 9.5 mm (W) x 0.635 mm (T) |
| Standard Coil Length | 50 m, 100 m, 150 m, 300 m |
| Rated Current Output | <= 30 mA/m (sand backfill) |
| Maximum Operating Voltage | 12 V DC |
| Design Life | >= 30 years |
| Interstitial Space Requirement | >= 75 mm |
| Coating Thickness | 8-12 um |
| Coil Weight 100m | Approx. 5.1 kg |
Ideal for cathodic protection of aboveground storage tank floors in refineries, terminals, and tank farms including new tank construction with double-bottom design and existing tank floor CP retrofit projects.
- Flexible form factor allows easy installation around complex geometries
- Ensures complete coverage and uniform protection
- Suitable for both new construction and retrofit projects
- Conforms to NACE SP0169 and ISO 15589-1 standards
Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request.
Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
