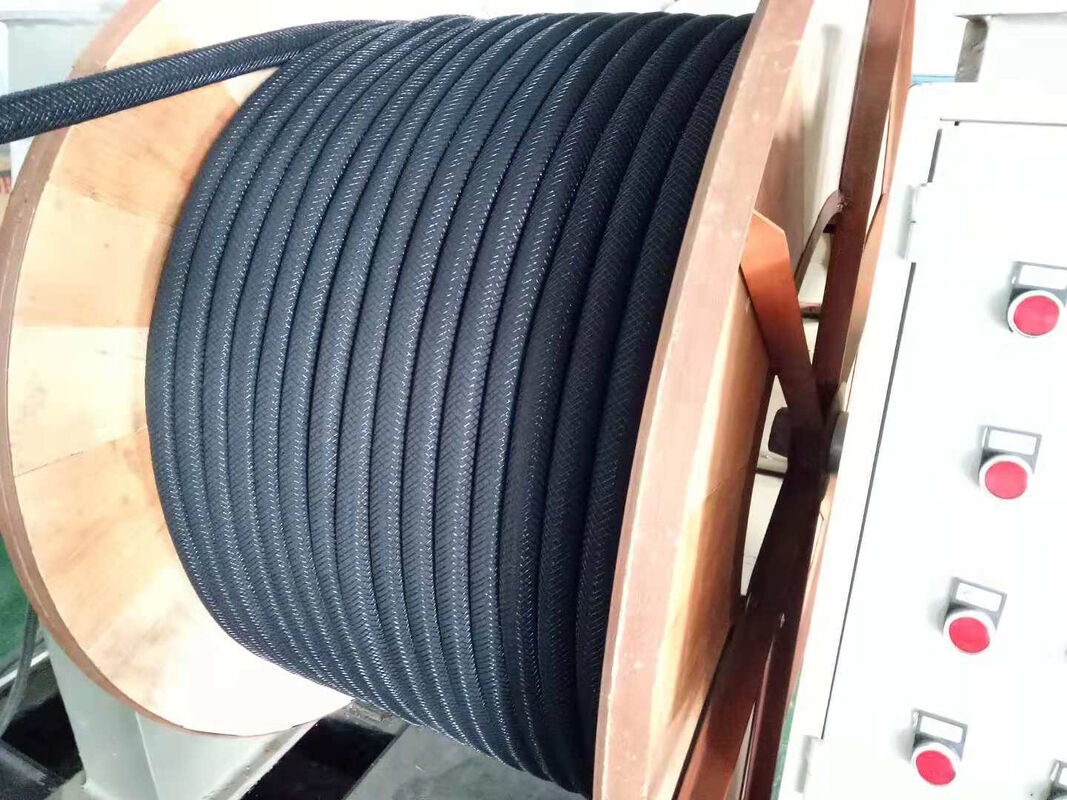

MMO Coated Titanium Wire Flexible Anode with Iridium-Tantalum Mixed Metal Oxide Coating, 2.5mm Diameter for 20+ Years Design Life
Product Details:
| Place of Origin: | Shaanxi, China |
| Brand Name: | YLK |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-W-2.5-BPN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD 3.50-12.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Coating Type: | Iridium-Tantalum Mixed Metal Oxide | Design Life: | >= 20 Years |
|---|---|---|---|
| Maximum Operating Voltage: | 24 V DC | Rated Current Output: | <= 200 MA/m (carbon Backfill) |
| Coating Thickness: | 8-12 Um | Wire Diameter: | 2.5 Mm +/- 0.05 Mm |
| Highlight: | MMO Ti Wire Urban Pipeline Anode,Buried Network Flexible ICCP Wire,Mixed Metal Oxide Pipeline CP Anode |
||
Product Description
This Mixed Metal Oxide (MMO) coated titanium wire flexible anode is engineered for impressed current cathodic protection (ICCP) systems in urban buried pipeline network cathodic protection including city gas distribution systems, district heating piping, municipal water transmission mains, and underground utility corridor CP applications. Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution across the entire protected structure.
- 2.5mm wire diameter offers excellent balance of flexibility and durability for horizontal directional drilling HDD anode installation
- Narrow diameter suitable for congested underground utility corridors with limited right-of-way access
- Continuous parallel anode wire configuration for pipeline networks with complex branching and interconnection
- Compatible with distributed anode groundbed designs for optimized current distribution in urban environments
- Meets utility company specifications for pipeline cathodic protection in municipal and urban infrastructure
| Parameter | Specification |
|---|---|
| Model | MMO-W-2.5-BPN |
| Anode Type | MMO/Ti Wire Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B348 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide |
| Wire Diameter | 2.5 mm +/- 0.05 mm |
| Standard Coil Length | 100 m, 200 m, 300 m, 500 m |
| Rated Current Output | <= 200 mA/m (carbon backfill) |
| Maximum Operating Voltage | 24 V DC |
| Design Life | >= 20 years |
| HDD Compatible | Yes |
| Coating Thickness | 8-12 um |
| Minimum Bend Radius | >= 75 mm |
- Urban buried pipeline network cathodic protection including city gas distribution systems
- District heating piping
- Municipal water transmission mains
- Underground utility corridor CP applications
The flexible form factor allows easy installation around complex geometries, ensuring complete coverage and uniform protection. Suitable for both new construction and retrofit projects in cathodic protection systems conforming to NACE SP0169 and ISO 15589-1 standards.
Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request. Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
