MMO Coated Titanium Ribbon Flexible Impressed Current Anode 15mm Width with Chemical Grade MMO Coating for 20+ Years Design Life
Product Details:
| Place of Origin: | Hunan China |
| Brand Name: | HB |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-R-15-CST |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD 20-50.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Rated Current Output: | <= 50 MA/m (chemical Electrolyte) | Coating Thickness: | 10-15 Um |
|---|---|---|---|
| Standard Coil Length: | 50 M, 100 M, 150 M | Coil Weight 100m: | Approx. 13.0 Kg |
| Maximum Operating Voltage: | 12 V DC | PH Operating Range: | 2-12 |
| Highlight: | MMO Ti Ribbon Chemical Tank Anode,Chemical Storage Flexible ICCP Ribbon,Mixed Metal Oxide Chemical CP Anode |
||
Product Description
MMO Coated Titanium Ribbon Flexible Impressed Current Anode 15mm Width for Chemical Storage Tank Internal CP
This Mixed Metal Oxide (MMO) coated titanium ribbon flexible anode is engineered for impressed current cathodic protection (ICCP) systems in internal protection of chemical storage tanks, process vessels, reactor tanks, brine storage tanks, acid neutralization tanks, and chemical containment areas in industrial processing facilities. Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution across the entire protected structure.
Key Features
- Wide 15mm ribbon with reinforced 1.0mm thickness for superior durability in aggressive chemical storage environments
- Enhanced MMO coating formulation with improved acid and alkali resistance for pH range 2-12 electrolyte service
- Compatible with chemical storage environments including acids, alkalis, brine solutions, and process water

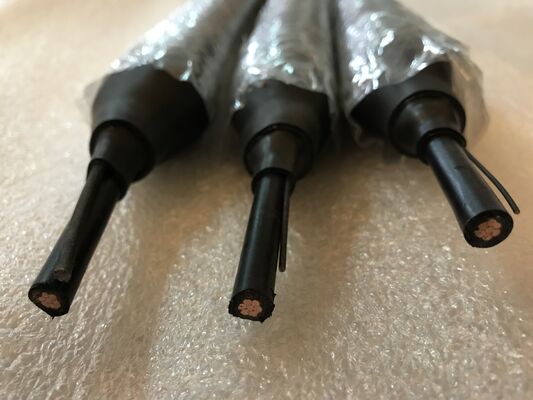

- Factory-terminated connection points with chemically resistant cable insulation for reliable long-term operation
- Suitable for both continuously immersed and intermittently wetted chemical tank internal surface conditions
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MMO-R-15-CST |
| Anode Type | MMO/Ti Ribbon Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B265 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide Chemical Grade |
| Ribbon Dimensions | 15 mm (W) x 1.0 mm (T) |
| Standard Coil Length | 50 m, 100 m, 150 m |
| Rated Current Output | <= 50 mA/m (chemical electrolyte) |
| Maximum Operating Voltage | 12 V DC |
| Design Life | >= 20 years |
| pH Operating Range | 2-12 |
| Coating Thickness | 10-15 um |
| Coil Weight 100m | Approx. 13.0 kg |
Applications
- Internal impressed current cathodic protection of chemical storage tanks, process vessels, reactor tanks, brine storage tanks, acid neutralization tanks, and chemical containment areas in industrial processing facilities
- Flexible form factor allows easy installation around complex geometries, ensuring complete coverage and uniform protection
- Suitable for both new construction and retrofit projects in cathodic protection systems conforming to NACE SP0169 and ISO 15589-1 standards
Packaging and Delivery

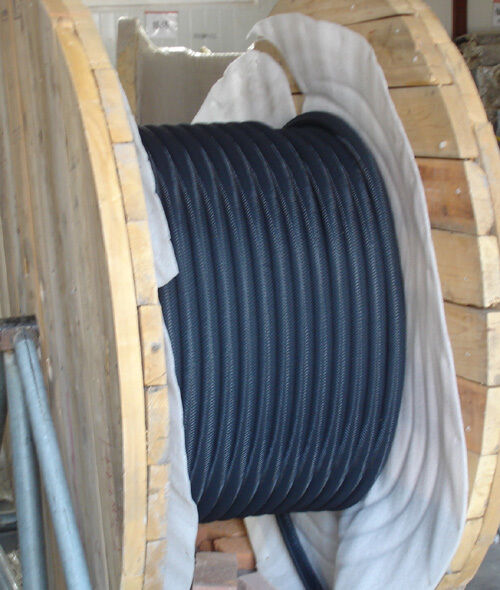

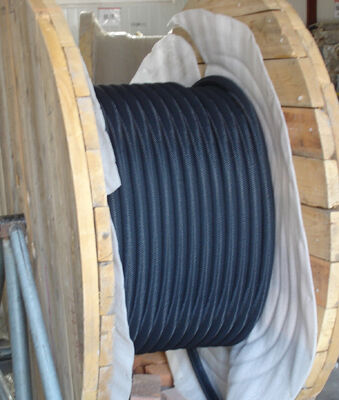

Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request. Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
