MMO Coated Titanium Wire Flexible Impressed Current Anode 1.5mm Dia with Iridium-Tantalum Coating for Prestressed Concrete CP
Product Details:
| Place of Origin: | Shaanxi, China |
| Brand Name: | YLK |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-W-1.5-PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD 3.50-12.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Rated Current Output: | <= 20 MA/m (concrete) | Coating Thickness: | 8-12 Um |
|---|---|---|---|
| Standard Coil Length: | 100 M, 200 M, 300 M, 500 M | Maximum Operating Voltage: | 6 V DC |
| Wire Diameter: | 1.5 Mm +/- 0.05 Mm | Design Life: | >= 25 Years |
| Highlight: | MMO Ti Wire Prestressed Concrete Anode,Post Tensioned Concrete Flexible CP,Mixed Metal Oxide Prestress CP Anode |
||
Product Description
This Mixed Metal Oxide (MMO) coated titanium wire flexible anode is engineered for impressed current cathodic protection (ICCP) systems in prestressed and post-tensioned concrete structures including bridge girders, parking structure beams, stadium elements, nuclear containment structures, and segmental bridge construction. Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution across the entire protected structure.
- 1.5mm precision wire diameter engineered for low-current-density CP of prestressed and post-tensioned concrete structures
- Controlled current output prevents hydrogen embrittlement risk in high-strength prestressing steel tendons
- Narrow wire profile permits installation in thin concrete cover zones typical of prestressed structural elements
- Compatible with both impressed current and hybrid CP system designs for prestressed concrete rehabilitation
- Meets fib Bulletin 33 and NACE SP0408 guidelines for cathodic protection of prestressed concrete structures
| Parameter | Specification |
|---|---|
| Model | MMO-W-1.5-PC |
| Anode Type | MMO/Ti Wire Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B348 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide |
| Wire Diameter | 1.5 mm +/- 0.05 mm |
| Standard Coil Length | 100 m, 200 m, 300 m, 500 m |
| Rated Current Output | <= 20 mA/m (concrete) |
| Maximum Operating Voltage | 6 V DC |
| Design Life | >= 25 years |
| Hydrogen Embrittlement Control | Current density <= 1 mA/m² at steel surface |
| Coating Thickness | 8-12 μm |
| Tendon Protection | Pretensioned and post-tensioned |
- Impressed current cathodic protection of prestressed and post-tensioned concrete structures
- Bridge girders, parking structure beams, stadium elements
- Nuclear containment structures and segmental bridge construction
- Flexible form factor allows easy installation around complex geometries
- Suitable for both new construction and retrofit projects
- Conforms to NACE SP0169 and ISO 15589-1 standards

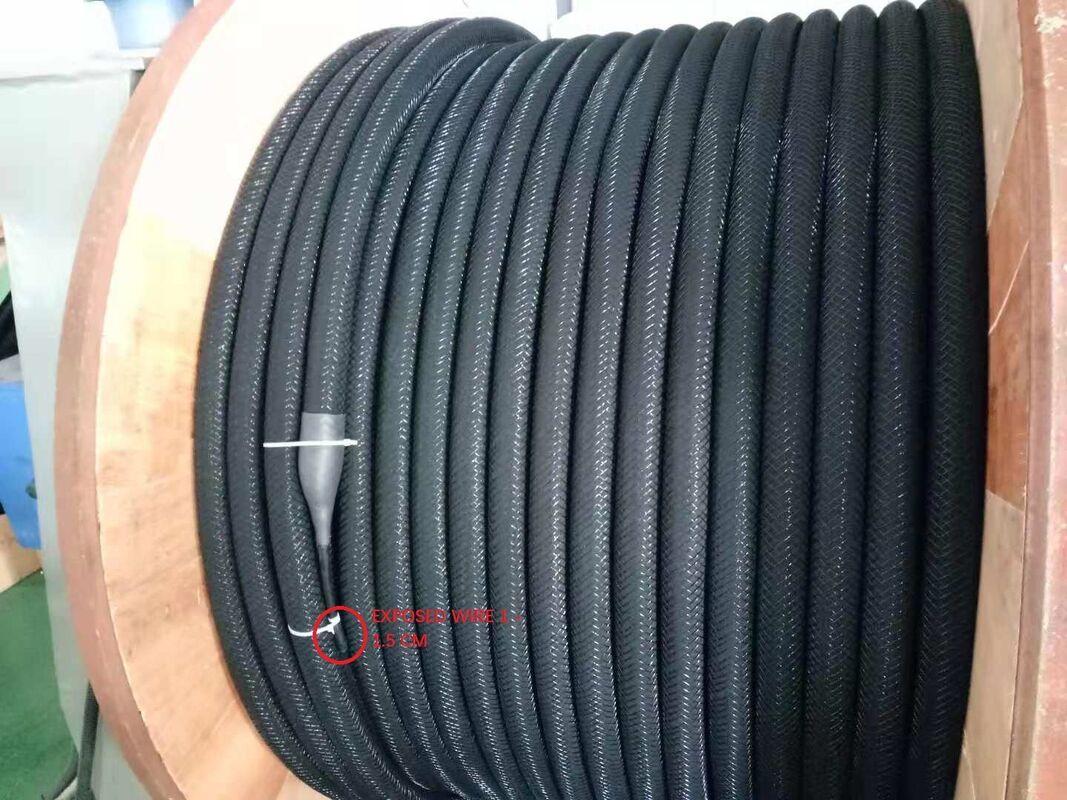

Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request. Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
