MMO Coated Titanium Tubular Flexible ICCP Anode with 19mm Dia and Iridium-Tantalum Mixed Metal Oxide Coating for 30 Years Design Life
Product Details:
| Place of Origin: | Shaanxi, China |
| Brand Name: | YLK |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-T-19-SG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD 3.50-12.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Coating Type: | Iridium-Tantalum Mixed Metal Oxide | Installation Depth: | 1.5-3.0 M (typical) |
|---|---|---|---|
| Design Life: | >= 30 Years | Maximum Operating Voltage: | 50 V DC |
| Rated Current Output: | <= 5.0 A/m (coke Breeze Backfill) | Tubular OD X Wall: | 19 Mm X 1.2 Mm |
| Highlight: | MMO Ti Tubular Groundbed Anode 19mm,Shallow Horizontal Flexible ICCP Tube,Mixed Metal Oxide Groundbed CP Anode |
||
Product Description
MMO Coated Titanium Tubular Flexible ICCP Anode 19mm Dia for Shallow Horizontal Groundbed Cathodic Protection
This Mixed Metal Oxide (MMO) coated titanium tubular flexible anode is engineered for impressed current cathodic protection (ICCP) systems in shallow horizontal impressed current anode groundbed installations. Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution across the entire protected structure.
Key Features
- Large 19mm outer diameter tubular construction provides maximum active anode surface area per linear meter for high-current groundbed designs
- Optimized for shallow horizontal anode groundbed configurations in low to medium soil resistivity conditions
- Pre-packaged in canister assemblies with calcined petroleum coke breeze backfill for consistent low-resistance anode operation
- Factory-welded internal titanium current distributor bar ensures uniform current distribution along full anode length
- Designed for simple trench excavation and backfill installation minimizing specialized equipment requirements on site
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MMO-T-19-SG |
| Anode Type | MMO/Ti Tubular Flexible Anode |
| Substrate Material | Grade 2 Titanium per ASTM B338 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide |
| Tubular OD x Wall | 19 mm x 1.2 mm |
| Standard Segment Length | 1.0 m, 1.5 m, 2.0 m |
| Rated Current Output | <= 5.0 A/m (coke breeze backfill) |
| Maximum Operating Voltage | 50 V DC |
| Design Life | >= 30 years |
| Installation Depth | 1.5-3.0 m (typical) |
| Active Surface Area | Approx. 0.06 m²/m |
| Canister Assembly | Pre-packaged option available |
Applications

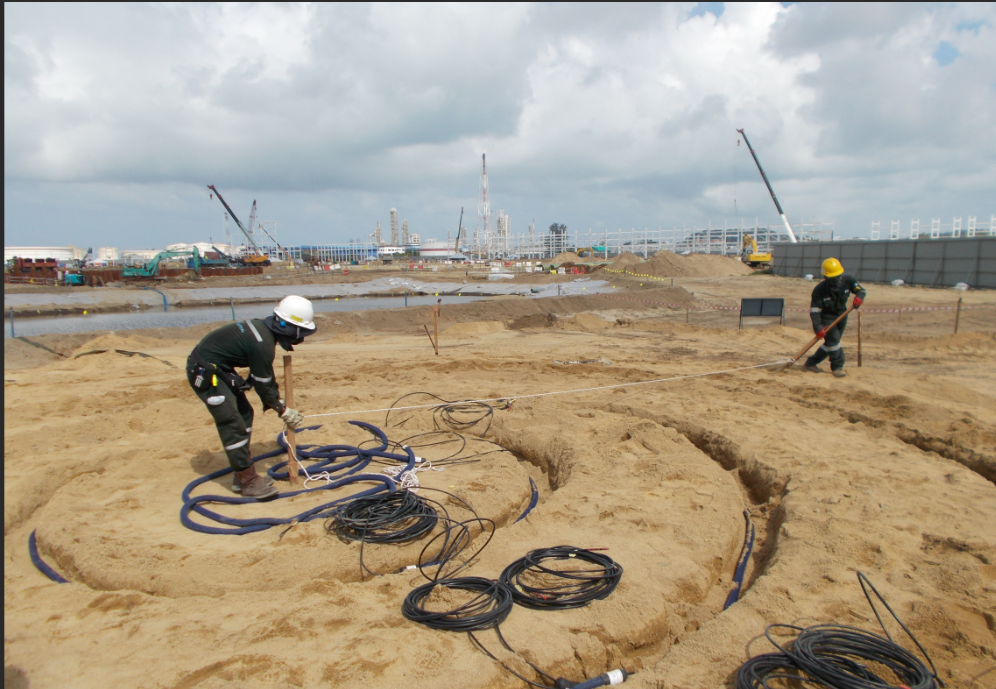

- Shallow horizontal impressed current anode groundbed installations for cathodic protection of pipelines
- Tank farms, compressor stations, metering stations, and valve stations
- Other buried infrastructure requiring cost-effective CP groundbed solutions
- Flexible form factor allows easy installation around complex geometries
- Suitable for both new construction and retrofit projects conforming to NACE SP0169 and ISO 15589-1 standards
Packaging and Delivery

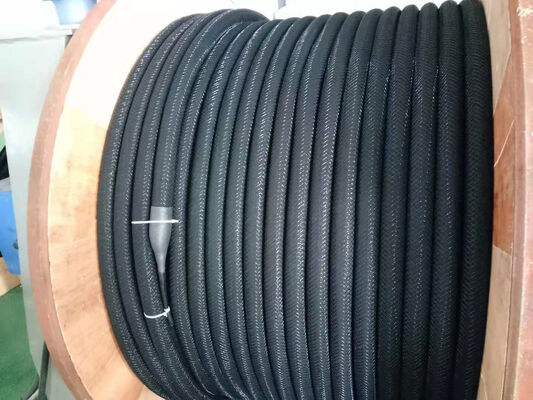

Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request. Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
