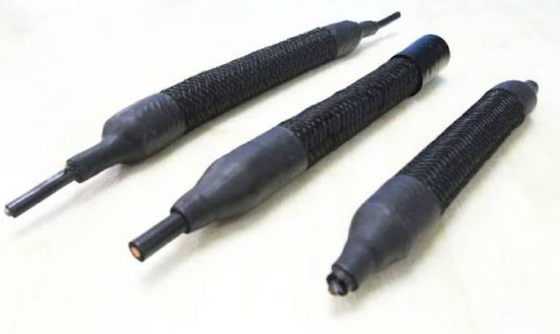

MMO Coated Titanium Wire Flexible ICCP Anode with 3.0mm Diameter and Iridium-Tantalum Mixed Metal Oxide Coating for 20+ Years Design Life in Marine Environments
Product Details:
| Place of Origin: | Shaanxi, China |
| Brand Name: | YLK |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-W-3.0-DOCK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Meters |
|---|---|
| Price: | USD 3.50-12.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Rated Current Output: | <= 400 MA/m (seawater) <= 200 MA/m (brackish Water) | Coating Thickness: | 10-15 Um |
|---|---|---|---|
| Standard Coil Length: | 100 M, 200 M, 300 M, 500 M | Water Depth Rating: | Surface To 30 M |
| Maximum Operating Voltage: | 24 V DC | Wire Diameter: | 3.0 Mm +/- 0.05 Mm |
| Highlight: | MMO Ti Wire Harbor Dock Anode,Dock Structure Flexible ICCP Wire,Mixed Metal Oxide Harbor CP Anode |
||
Product Description
This Mixed Metal Oxide (MMO) coated titanium wire flexible anode is engineered for impressed current cathodic protection (ICCP) systems in dock structures, cargo terminals, ferry berths, Ro-Ro ramps, harbor steel sheet pile walls, port mooring facilities, and harbor infrastructure in seawater and brackish estuarine environments. Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution across the entire protected structure.
- 3.0mm wire diameter selected for robust performance across varying salinity conditions in dock and harbor environments
- Effective in both full seawater and brackish estuarine water electrolytes common in port and harbor locations
- Flexible wire routing easily adapts to complex dock geometry including fender systems, mooring dolphins, and breasting structures
- Compatible with harbor facility ICCP power supplies and impressed current anode junction box systems
- Conforms to PIANC and NACE SP0387 standards for harbor and port structure cathodic protection
| Parameter | Specification |
|---|---|
| Model | MMO-W-3.0-DOCK |
| Anode Type | MMO/Ti Wire Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B348 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide Marine Grade |
| Wire Diameter | 3.0 mm +/- 0.05 mm |
| Standard Coil Length | 100 m, 200 m, 300 m, 500 m |
| Rated Current Output | <= 400 mA/m (seawater) <= 200 mA/m (brackish water) |
| Maximum Operating Voltage | 24 V DC |
| Design Life | >= 20 years |
| Salinity Range | 5-40 PSU |
| Coating Thickness | 10-15 um |
| Water Depth Rating | Surface to 30 m |
Ideal for impressed current cathodic protection of dock structures, cargo terminals, ferry berths, Ro-Ro ramps, harbor steel sheet pile walls, port mooring facilities, and harbor infrastructure in seawater and brackish estuarine environments. The flexible form factor allows easy installation around complex geometries, ensuring complete coverage and uniform protection. Suitable for both new construction and retrofit projects in cathodic protection systems conforming to NACE SP0169 and ISO 15589-1 standards.
Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request. Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
