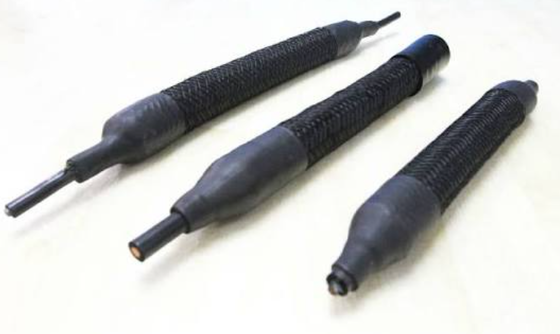

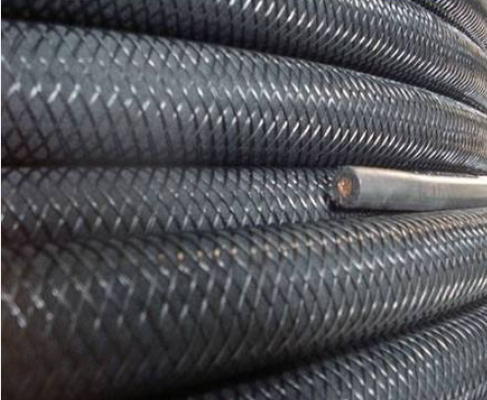

MMO Coated Titanium Ribbon Flexible Impressed Current Anode 6.35mm Width with Iridium-Tantalum Mixed Metal Oxide Coating for 25 Years Design Life in Tunnel Lining CP
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | HB |
| Certification: | ISO 9001:2015, ISO 14001:2015 |
| Model Number: | MMO-R-6.35-TL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 Meters |
|---|---|
| Price: | USD 20.0-60.00 / Meter |
| Packaging Details: | Export-grade plywood spool with moisture-proof wrapping, reinforced corrugated carton |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 50000 Meters per Month |
|
Detail Information |
|||
| Substrate Material: | Grade 1 Titanium Per ASTM B265 | Coating Type: | Iridium-Tantalum Mixed Metal Oxide |
|---|---|---|---|
| Ribbon Dimensions: | 6.35 Mm (W) X 0.635 Mm (T) | Standard Coil Length: | 50 M, 100 M, 150 M, 300 M |
| Rated Current Output: | <= 25 MA/m (concrete/grout) | Maximum Operating Voltage: | 12 V DC |
| Design Life: | >= 25 Years | Tunnel Application: | Bored Tunnel Cut-and-cover Immersed Tube |
| Coating Thickness: | 8-12 Um | Coil Weight 100m: | Approx. 2.9 Kg |
| Highlight: | MMO Ti Ribbon Tunnel Lining Anode,Underground Tunnel Flexible CP Ribbon,Mixed Metal Oxide Tunnel CP Anode |
||
Product Description
This Mixed Metal Oxide (MMO) coated titanium ribbon flexible anode is engineered for impressed current cathodic protection (ICCP) systems in tunnel linings, underground metro stations, subway structures, highway tunnels, utility tunnels, pedestrian underpasses, and other subsurface reinforced concrete civil infrastructure. Manufactured with premium Grade 1 titanium substrate and precision-applied iridium-tantalum mixed metal oxide coating, it delivers exceptional electrochemical performance, long service life, and uniform current distribution across the entire protected structure.
- Compact 6.35mm ribbon width specifically designed for installation in confined tunnel lining spaces and segmental tunnel joints
- Flexible ribbon easily follows curved tunnel profiles including arch crowns, sidewalls, and invert sections
- Integrated into tunnel segment gaskets or mounted along longitudinal tunnel joints for seamless CP integration
- Compatible with cast-in-place concrete tunnel lining, precast segmental lining, and shotcrete primary lining applications
- Meets ITA and NACE SP0290 recommendations for cathodic protection of underground reinforced concrete structures
| Parameter | Specification |
|---|---|
| Model | MMO-R-6.35-TL |
| Anode Type | MMO/Ti Ribbon Flexible Anode |
| Substrate Material | Grade 1 Titanium per ASTM B265 |
| Coating Type | Iridium-Tantalum Mixed Metal Oxide |
| Ribbon Dimensions | 6.35 mm (W) x 0.635 mm (T) |
| Standard Coil Length | 50 m, 100 m, 150 m, 300 m |
| Rated Current Output | <= 25 mA/m (concrete/grout) |
| Maximum Operating Voltage | 12 V DC |
| Design Life | >= 25 years |
| Tunnel Application | Bored tunnel, cut-and-cover, immersed tube |
| Coating Thickness | 8-12 um |
| Coil Weight 100m | Approx. 2.9 kg |
- Impressed current cathodic protection of tunnel linings, underground metro stations, subway structures, highway tunnels, utility tunnels, pedestrian underpasses, and other subsurface reinforced concrete civil infrastructure
- Flexible form factor allows easy installation around complex geometries, ensuring complete coverage and uniform protection
- Suitable for both new construction and retrofit projects in cathodic protection systems conforming to NACE SP0169 and ISO 15589-1 standards
Supplied on durable export-grade spools with protective wrapping. Standard coil lengths available from 50 to 500 meters per spool. Custom lengths and configurations available upon request. Each shipment includes full quality documentation including coating inspection reports and mill test certificates.
