Boron Carbide Sandblasting Nozzle with Replaceable Core Design and 6061-T6 Aluminum Alloy Sleeve for HRA 93+ Hardness
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015 |
| Model Number: | B4C-AS-4525 |
| Document: | Venturi nozzle Jane.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | USD 15-35 / Piece |
| Packaging Details: | Individual foam-lined box, export-grade corrugated carton with shock-proof protection |
| Delivery Time: | 3-7 working days for stock, 10-20 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 30000 Pieces per Month |
|
Detail Information |
|||
| Material: | B4C Core + Aluminum Alloy Sleeve | Density (Core): | 2.48-2.52 G/cm³ |
|---|---|---|---|
| Hardness (Core): | HRA 93+ / HV 2800-3300 | Sleeve Material: | 6061-T6 Aluminum Alloy |
| Orifice Diameter: | 6mm / 8mm / 10mm | Dimensions: | 45x25mm (LxOD With Sleeve) |
| Working Pressure: | 0.4-0.8 MPa | Max Temperature: | 400°C (Sleeve Rated) |
| Design: | Replaceable Core | ||
| Highlight: | B4C Nozzle Aluminum Sleeve,Protected Sandblast Nozzle,Boron Carbide Jacketed Nozzle |
||
Product Description
Boron Carbide B4C Sandblasting Nozzle Aluminum Protective Sleeve Jacket Assembly 12.7*210mm

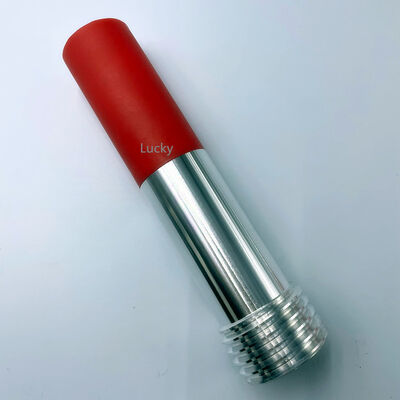

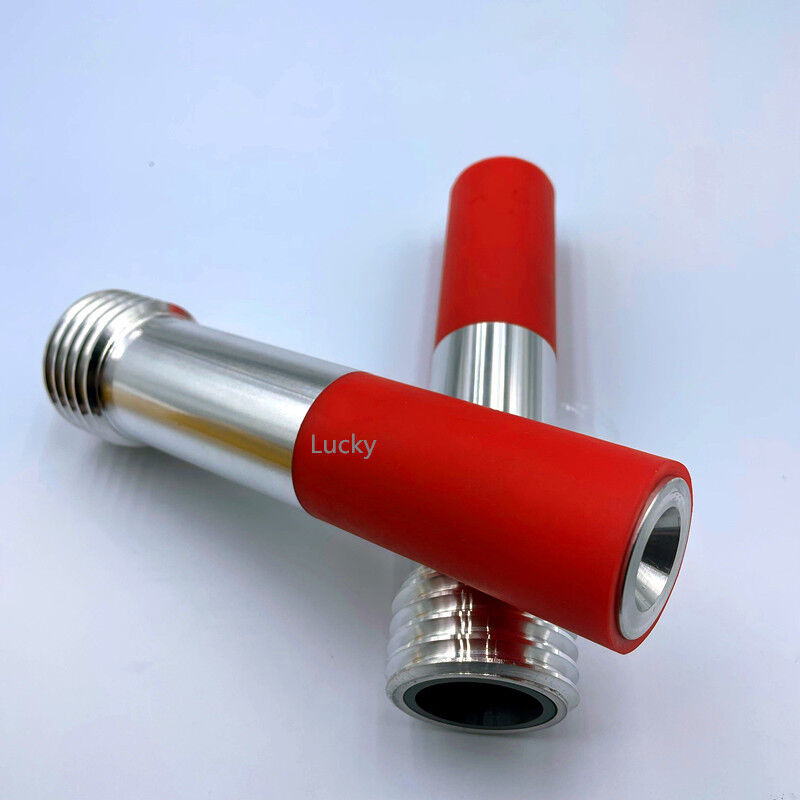

Boron Carbide (B4C) Sandblasting Nozzle with Aluminum Protective Sleeve
The High Broad Boron Carbide (B4C) Sandblasting Nozzle with Aluminum Protective Sleeve Jacket combines the extreme wear resistance of a B4C ceramic core with the impact protection of a 6061-T6 aluminum alloy outer sleeve. This dual-layer design provides enhanced durability against accidental drops and mechanical shocks during operation, significantly extending the overall service life of your sandblasting equipment.
Key Features
- Dual-Layer Protection: B4C inner core (HRA 93+) for abrasive resistance + 6061-T6 aluminum outer sleeve for impact protection
- Replaceable Core Design: Cost-effective maintenance — replace only the worn B4C core instead of the entire nozzle assembly
- Enhanced Durability: Aluminum sleeve absorbs mechanical shocks that would otherwise crack bare ceramic nozzles
- Heat Dissipation: Aluminum jacket aids in thermal management during extended blasting sessions
- Assembly Dimensions: 45mm length x 25mm outer diameter (with sleeve)
Technical Specifications
| Core Material | Boron Carbide (B4C) |
|---|---|
| Core Hardness | HRA 93+ / HV 2800-3300 |
| Sleeve Material | 6061-T6 Aluminum Alloy |
| Assembly Dimensions | 45 x 25 mm (L x OD with Sleeve) |
| Orifice Diameter | 6mm / 8mm / 10mm |
| Working Pressure | 0.4-0.8 MPa |
| Max Operating Temperature | 400°C (Sleeve Rated) |
Applications
Perfect for heavy-duty industrial blasting, construction site surface preparation, ship hull maintenance, and any environment where equipment may experience physical impact during use.
