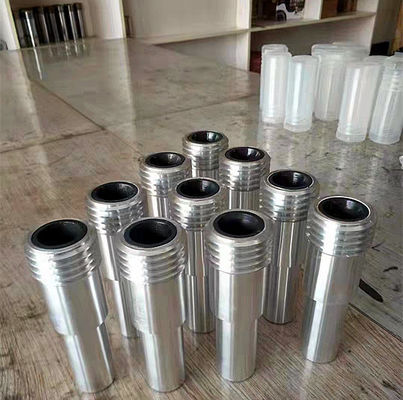

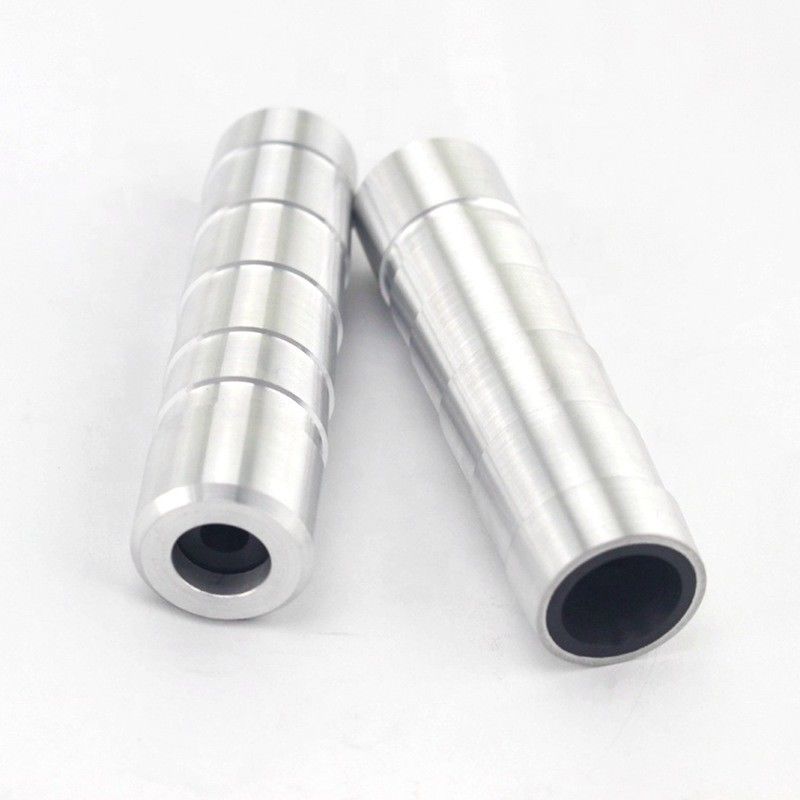

Boron Carbide Sandblasting Nozzle with Straight Bore for Uniform Abrasive Flow and 70x22mm Dimensions
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015 |
| Model Number: | B4C-SB-7022 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | USD 12-30 / Piece |
| Packaging Details: | Individual foam-lined box, export-grade corrugated carton with shock-proof protection |
| Delivery Time: | 3-7 working days for stock, 10-20 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 35000 Pieces per Month |
|
Detail Information |
|||
| Density: | 2.48-2.52 G/cm³ | Max Temperature: | 600°C |
|---|---|---|---|
| Dimensions: | 70x22mm (LxOD) | Working Pressure: | 0.4-0.8 MPa |
| Hardness: | HRA 93+ / HV 2800-3300 | Orifice Diameter: | 6mm / 8mm / 10mm |
| Highlight: | Straight Bore B4C Nozzle,Uniform Abrasive Flow Tip,Boron Carbide Direct Nozzle |
||
Product Description
Boron Carbide B4C Straight Bore Sandblasting Nozzle Uniform Abrasive Flow Direct 3.2x200 mm
Boron Carbide (B4C) Straight Bore Sandblasting Nozzle — Uniform Abrasive Flow
The High Broad Boron Carbide (B4C) Straight Bore Sandblasting Nozzle features a precision cylindrical bore that delivers a uniform, concentrated abrasive flow pattern for consistent surface finishing results. The 70x22mm design ensures even particle distribution across the blast pattern, making it the preferred choice for applications requiring uniform surface texture and controlled material removal.
Key Features
- Uniform Cylindrical Bore: Consistent internal diameter from entry to exit ensures predictable, repeatable blast patterns
- Concentrated Flow Pattern: Produces a tight, focused abrasive stream for precise surface treatment
- Even Particle Distribution: No turbulence or velocity variations across the blast cone cross-section
- 70mm Bore Length: Optimized for balanced acceleration and flow stability
- 22mm Outer Diameter: Robust construction withstands high-pressure continuous operation
Technical Specifications
| Material | Boron Carbide (B4C) |
|---|---|
| Bore Type | Straight Cylindrical Bore |
| Hardness | HRA 93+ / HV 2800-3300 |
| Dimensions | 70 x 22 mm (L x OD) |
| Orifice Diameter | 6mm / 8mm / 10mm |
| Flow Pattern | Uniform Concentrated |
| Working Pressure | 0.4-0.8 MPa |
| Max Temperature | 600°C |
Applications
Best suited for surface preparation requiring uniform finish quality: automotive bodywork, precision metal fabrication, weld cleaning, graffiti removal, and architectural surface restoration where consistent results are paramount.
