Boron Carbide Nozzle with 45 Degree Bent Tip for Hard-to-Reach Surface Access - 140x4.8mm
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High Broad |
| Certification: | ISO 9001:2015 |
| Model Number: | B4C-AG-5518-45 |
| Document: | Venturi nozzle Jane.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | USD 12-32 / Piece |
| Packaging Details: | Individual foam-lined box, export-grade corrugated carton with shock-proof protection |
| Delivery Time: | 3-7 working days for stock, 10-20 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 25000 Pieces per Month |
|
Detail Information |
|||
| Dimensions: | 55x18mm (LxOD) | Working Pressure: | 0.4-0.8 MPa |
|---|---|---|---|
| Hardness: | HRA 93+ / HV 2800-3300 | Bend Angle: | 45 Degrees |
| Max Temperature: | 600°C | Orifice Diameter: | 5mm / 6mm / 8mm |
| Highlight: | Angle B4C Sandblast Nozzle,45 Degree Bent Blasting Tip,Boron Carbide Curved Angle Tip |
||
Product Description
Boron Carbide B4C Angle Sandblasting Nozzle 45 Degree Bent Tip Hard-to-Reach Surface 140x4.8mm

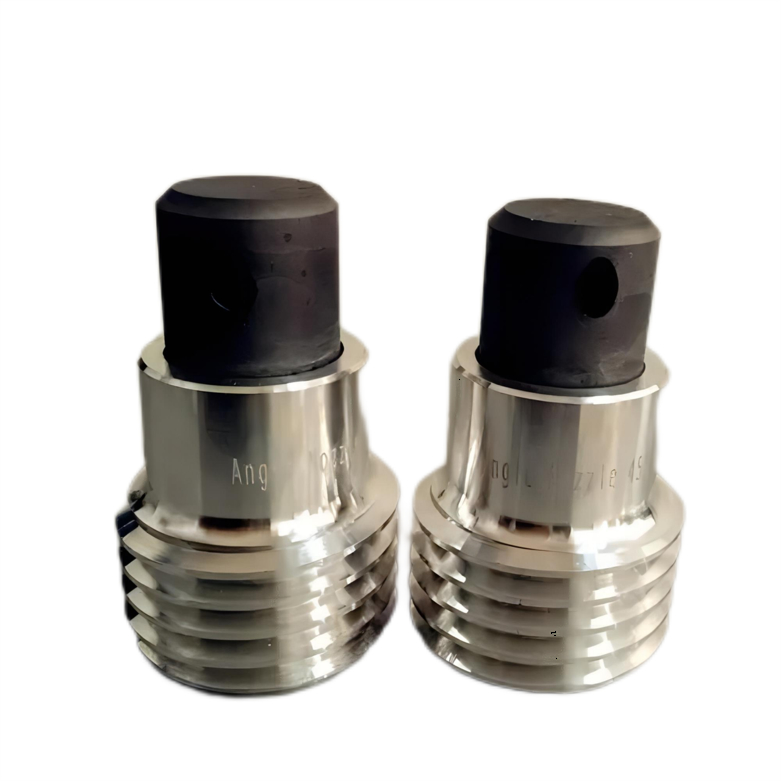

Boron Carbide (B4C) 45-Degree Angle Sandblasting Nozzle — Bent Tip Design
The High Broad Boron Carbide (B4C) 45-Degree Angle Sandblasting Nozzle features a precision-engineered 45-degree bent tip that provides access to hard-to-reach surfaces, internal cavities, and confined spaces that standard straight nozzles cannot effectively treat. The 55x18mm compact profile ensures maneuverability without sacrificing the exceptional wear resistance of hot pressed boron carbide.
Key Features
- 45-Degree Bent Tip: Optimal angle for accessing corners, undercuts, reverse sides, and internal surfaces
- Compact Form Factor: 55mm length x 18mm OD — ideal for operating in confined spaces
- Internal Cavity Access: Reaches inside pipes, tubes, channels, and hollow structures for complete surface preparation
- Consistent Bore Quality: Uniform B4C wall thickness maintained throughout the bend for even wear distribution
- Small Orifice Options: 5mm, 6mm, and 8mm orifices for controlled abrasive delivery in tight spaces
Technical Specifications
| Material | Boron Carbide (B4C) |
| Bend Angle | 45 Degrees |
| Hardness | HRA 93+ / HV 2800-3300 |
| Dimensions | 140*4.8 mm (L x OD) |
| Orifice Diameter | 4.8mm / 6.4mm / 7.9mm / 9.5mm |
| Working Pressure | 0.4-0.8 MPa |
| Max Temperature | 600°C |
Applications
- Internal pipe blasting
- Tube bundle cleaning
- Heat exchanger maintenance
- Automotive chassis cavity treatment
- Weld seam preparation in box sections
- Structural steel joint preparation where standard nozzles cannot achieve proper coverage
