Boron Carbide Nozzle with 45 Degree Bend for Internal Surface Blasting - 127x9.5mm Sandblasting Nozzle
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | HIGH BROAD |
| Certification: | ISO 9001:2015 |
| Model Number: | B4C-CV-6018-60 |
| Document: | Venturi nozzle Jane.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | USD 45-88 / Piece |
| Packaging Details: | Individual foam-lined box, export-grade corrugated carton with shock-proof protection |
| Delivery Time: | 3-7 working days for stock, 10-20 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000 Pieces per Month |
|
Detail Information |
|||
| Density: | 2.48-2.52 G/cm³ | Curvature Angle: | 45 Degrees |
|---|---|---|---|
| Max Temperature: | 600°C | Dimensions: | 60x18mm (LxOD) |
| Hardness: | HRA 93+ / HV 2800-3300 | Working Pressure: | 0.4-0.8 MPa |
| Highlight: | Curved B4C Sandblast Nozzle,Bent Angle Blasting Tip,Boron Carbide Curved Bore |
||
Product Description
Boron Carbide B4C Curved Sandblasting Nozzle Banana Nozzle 40 to 45 Degree Bend Internal Surface Blasting Tip 127x9.5mm

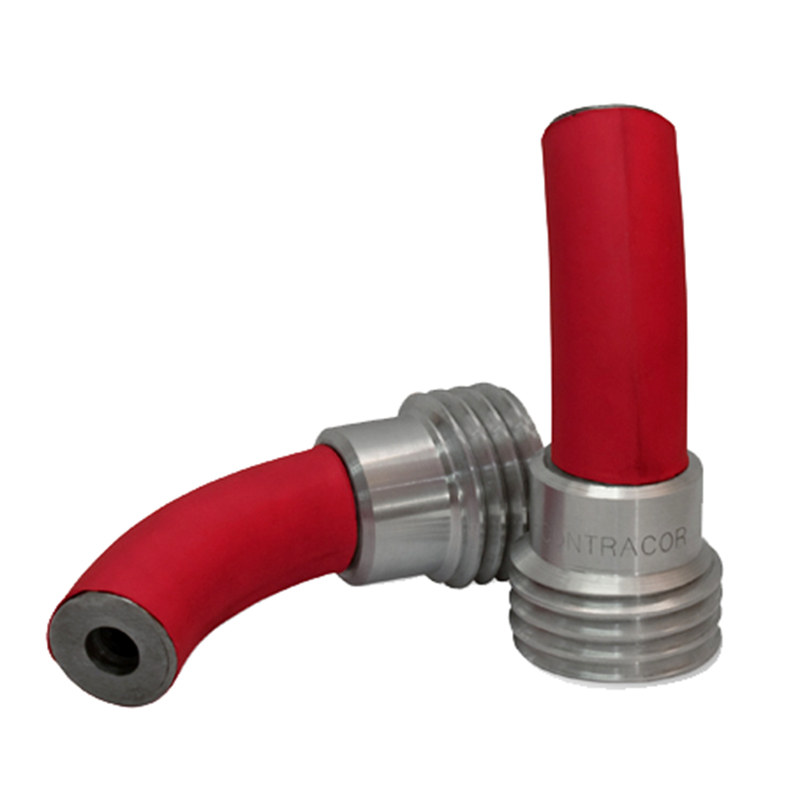

Boron Carbide (B4C) 40-45 Degree Curved Sandblasting Nozzle — Internal Surface Blasting
The High Broad Boron Carbide (B4C) 40-45 Degree Curved Sandblasting Nozzle features a continuous 40-45 degree curvature designed for internal surface blasting of pipes, tubes, elbows, and complex geometries. The 127x9.5mm extended reach design combined with B4C wear resistance makes it the go-to choice for internal pipe maintenance and complex cavity preparation.
Key Features
- 45 Degree Continuous Curvature: Smooth bore transition throughout the bend maintains abrasive flow velocity and reduces internal wear
- Internal Surface Access: Effectively blasts the inner walls of pipes, tubes, bends, and irregular hollow structures
- Extended Reach: 60mm overall length provides deeper access into pipes and cavities than shorter curved nozzles
- Complex Geometry Capable: Ideal for parts with non-linear internal passages, elbows, T-joints, and reducers
- Small Orifice Options: 4.8mm, 6.4mm-12.7mm for controlled abrasive flow in internal applications
Technical Specifications
| Material | Boron Carbide (B4C) |
|---|---|
| Curvature Angle | 40-45 Degrees |
| Hardness | HRA 93+ / HV 2800-3300 |
| Dimensions | 9.5x127 mm (L x OD) |
| Orifice Diameter | 4.8mm / 6.4mm / 12.7mm |
| Working Pressure | 0.4-0.8 MPa |
| Max Temperature | 600°C |
Applications
Specialized for internal pipe coating removal, pipeline maintenance, tube bundle internal cleaning, heat exchanger tube preparation, complex casting internal finishing, and any application requiring abrasive blasting of non-linear internal surfaces.
