Packaged Magnesium Anode with Copper Core Wire and Backfill Powder for ASTM G-97 Standard Corrosion Protection
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | OEM |
| Certification: | ASTM G-97, ISO 9001:2015 |
| Model Number: | PKG-MG-17D3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 5.0-10.0 / Piece |
| Packaging Details: | Export wooden pallet with moisture proof wrap |
| Delivery Time: | 7-15 days for stock, 20-30 days for production |
| Payment Terms: | T/T,L/C,Western Union,PayPal |
| Supply Ability: | 3000 Tons per Year |
|
Detail Information |
|||
| Core Wire: | Copper Core, 3 Mm Or 6 Mm | Anode Weight: | 7.7 Kg, 14.5 Kg, 22.7 Kg |
|---|---|---|---|
| Lead Wire: | THHN/PVC Insulated Copper | Cable Length: | 2 M, 3 M Or Customized |
| Backfill Powder: | Gypsum, Bentonite And Sodium Sulfate Mix | Current Efficiency: | Above 50% |
| Highlight: | Magnesium Packaged Anode with Wire,Backfill Powder Magnesium Anode,Copper Core Wire Anode |
||
Product Description
Magnesium Packaged Anode Backfill Powder Copper Core Wire for Buried Soil Corrosion Protection
Product Overview

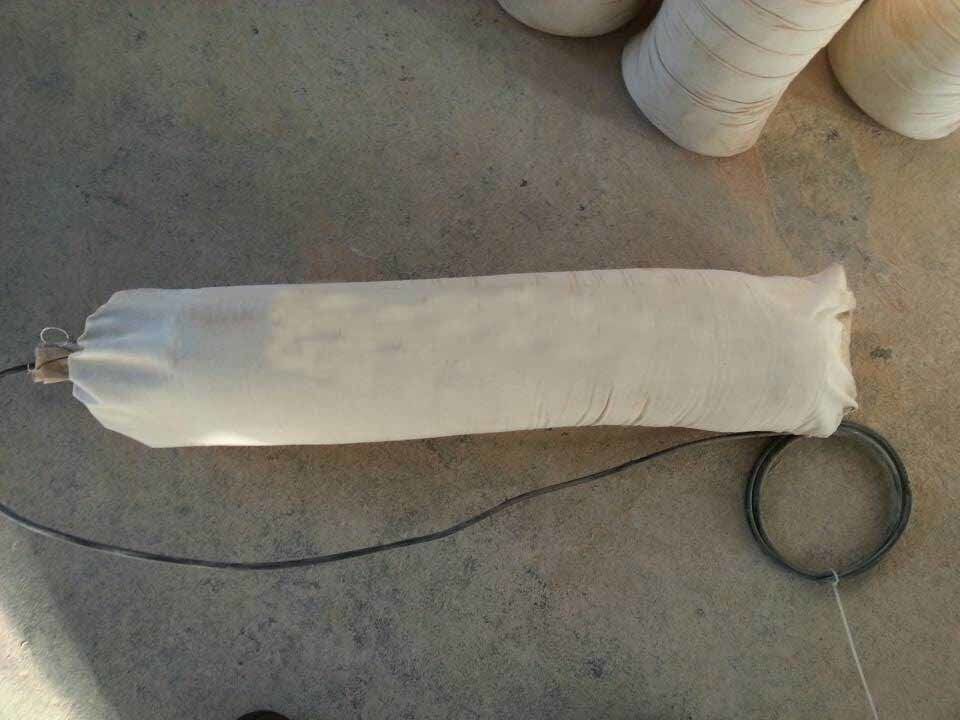

The packaged magnesium anode is supplied with a low resistance backfill powder column and a copper core lead wire, ready for direct burial. The backfill lowers the anode to soil resistance and raises current output, extending the working life of buried steel structures.
Key Features
- Complete package with backfill powder and copper core wire
- Improved grounding for stable, high current output in dry soil
- Cast magnesium alloy per ASTM G-97, current efficiency above 50%
- Available in 7.7 kg, 14.5 kg and 22.7 kg standard sizes
- Custom cable length and lead wire insulation on request
Applications
- Buried oil and gas pipelines
- Storage tank bottoms
- Water lines
- Grounding systems
- Reinforced concrete structures in high resistivity soil
Specifications
| Item | Value |
|---|---|
| Core Wire | Copper, 3 mm or 6 mm |
| Backfill Powder | Gypsum, bentonite, sodium sulfate |
| Lead Wire | PVC insulated copper, 2-3 m |
| Anode Weight | 7.7 kg, 14.5 kg, 22.7 kg |
Packaging and Delivery

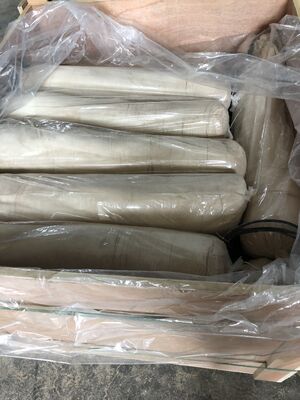

Export wooden pallet with moisture proof wrap. Sample available for testing before bulk order.
