Boron Carbide Sandblast Nozzle with 6mm Bore and 100mm Length for Effective Dust Control
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HB |
| Certification: | ISO 9001:2015 |
| Model Number: | BC-WI-0610 |
| Document: | Venturi nozzle Jane.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | USD 5-10 / Piece |
| Packaging Details: | Color box with shock-proof foam insert, export-grade corrugated carton |
| Delivery Time: | 3 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 20000 Pieces per Month |
|
Detail Information |
|||
| Material: | Boron Carbide (B4C) | Bending Strength: | > 400 MPa |
|---|---|---|---|
| Max Temperature: | 1200 C | Overall Length: | 100mm |
| Bore Diameter: | 6mm | Outer Diameter: | 28mm |
| Highlight: | Boron Carbide Water Induction Nozzle,Dust Control Blasting Nozzle,100mm Wet Blasting Nozzle |
||
Product Description

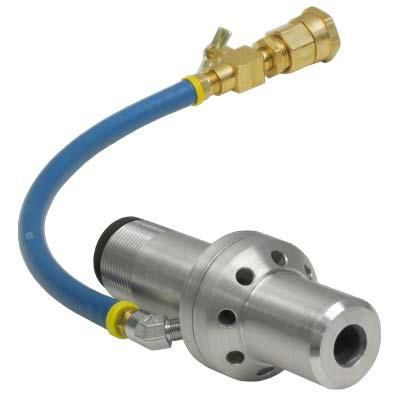

Boron Carbide Water Induction Sandblast Nozzle 6mm Bore 100mm Length for Dust Control
Product Overview
Model: BC-WI-0610
The boron carbide water induction sandblast nozzle draws water into the abrasive stream to suppress dust, reducing airborne dust by up to 90% while maintaining strong blasting performance. A practical choice for dust sensitive job sites.
Key Features
- Integrated water induction reduces dust by up to 90%
- High purity boron carbide body with Mohs hardness 9.3
- Controlled water flow keeps media effective and clean
- Precision ground 6mm bore for stable performance
- Withstands working temperatures up to 1200°C
Technical Specifications
| Model Number | BC-WI-0610 |
| Material | Boron Carbide (B4C) |
| Hardness | HRA 88-92 (Mohs 9.3) |
| Density | 2.48 g/cm³ |
| Bending Strength | > 400 MPa |
| Bore Diameter | 6mm |
| Overall Length | 100mm |
| Outer Diameter | 28mm |
| Connection | Aluminum jacket, water inlet port |
| Max Working Temperature | 1200°C |
| Service Life | 800-1000 hours |
| MOQ | 10 pieces |
Material Comparison
| Property | Boron Carbide B4C | Tungsten Carbide | Silicon Carbide | Alumina Ceramic |
|---|---|---|---|---|
| Hardness (Mohs) | 9.3 | 9.0 | 9.2 | 8.5 |
| Density (g/cm³) | 2.48 | 14.8 | 3.12 | 3.60 |
| Relative Service Life | 5.0x | 3.5x | 2.5x | 1.0x |
| Max Working Temp (°C) | 1200 | 1000 | 1400 | 1500 |
| Best Application | Heavy duty blasting | General blasting | Medium duty | Light duty |
Performance Comparison
| Criterion | Water Induction Nozzle | Dry Blasting Nozzle |
|---|---|---|
| Dust Level | Reduced up to 90% | High dust |
| Water Usage | Low and controlled | None |
| Best For | Dust sensitive sites | Dry blasting |
Application Scenarios
| Application | Description |
|---|---|
| Dust sensitive sites | Indoor and confined area blasting |
| Wet blasting | Simultaneous cleaning and dust control |
| Bridge and tank work | Controlled dust near public areas |
| Surface prep | Wet preparation before coating |
Why Choose Our Nozzle
- Factory direct pricing with stable bulk supply
- Strict dimensional inspection on every nozzle
- OEM and custom bore sizes available
- Fast lead time for both stock and production orders
Send us your bore size, quantity and application details to receive a tailored quotation and a free sample for testing.
