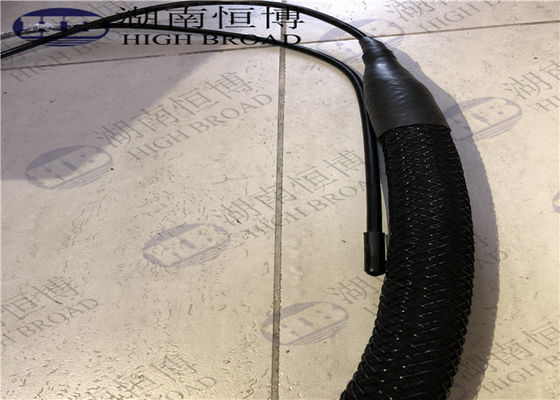

Piggyback Wire Sock Anodes , Mixed Metal Oxide Anode For Cathodic Protection
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | ISO, DNV,BV |
| Model Number: | ASTM B348 GRADE I/II |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 meter |
|---|---|
| Price: | negotiable |
| Packaging Details: | on pallet |
| Delivery Time: | 1FCL: 14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 30000meters/month |
|
Detail Information |
|||
| Application: | Protect Tank Bottom, Underground Vessel, And Pipeline | Standard: | ASTM B348 GRADE I/II |
|---|---|---|---|
| Shape: | Mixed Metal Oxide Titanium Wire Flexible Anode | Content: | Impressed Current Cathodic Protection Oil Tank Pipelines |
| Type: | Impressed Current Anode | ||
| Highlight: | mg anode,magnesium sacrificial anode |
||
Product Description
Piggyback Wire Sock ANODES FOR CATHODIC PROTECTION
MMO Piggyback Wire Sock Anodes are manufactured using titanium substrate which meets ASTM B348 Grade I Standard and coated with Mixed Metal Oxides on the external surface. We manufacture three diameters: 1.0mm, 1.5mm and 3.0mm.Connect with various cables, such as: HMWPE, XLPE/PVC, KYNAR/HMWPE, etc.
MMO Piggyback Wire Sock Anode is an ideal cathodic protection product to replace the conventional anodes used to protect tank bottom, underground vessel, and pipeline. Our sock anodes are made from high grade titanium wire with Mixed Metal Oxide catalyst, and can last for more than 50 years.
1.Specification
1). Material Specification:
•Substrate: ASTM B348 Grade I / II
•Catalyst: Mixed Metal Oxide
•Cable: HMWPE, XLPE/PVC, KYNAR/HMWPE, etc.
•MMO wire to cable connection: Crimp Connection: 3 meters each
2). Typical Anode Specification:
| MMO wire diameter | 1.0mm | 1.5mm | 3.0mm |
| Titanium substrate | ASTM B348 Grade I / II | ||
| Mixed Metal Oxide Catalyst | Iridium Tantalum | ||
| Current output for 20 years life | 67 mA/m | 89 mA/m | 195 mA/m |
| Current output for 30 years life | 45 mA/m | 65 mA/m | 130 mA/m |
| Current output for 50years life | 28 mA/m | 41 mA/m | 78 mA/m |
| Backfill | Calcium Petroleum Coke | ||
| Sock dimension | 38mm Diameter | ||
| Length per reel | 150 Meters (Customized length at requested) | ||
2.Typical Applications
•Tank bottom
•Underground vessels
•Pipelines
