9 Lbs 17 Lbs 32 Lbs Magnesium Anodes Cathodic Protection Bare And Prepackaged 17D3
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | High Broad |
| Certification: | ISO |
| Model Number: | HP AZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece if have stock |
|---|---|
| Price: | USD, Discussed |

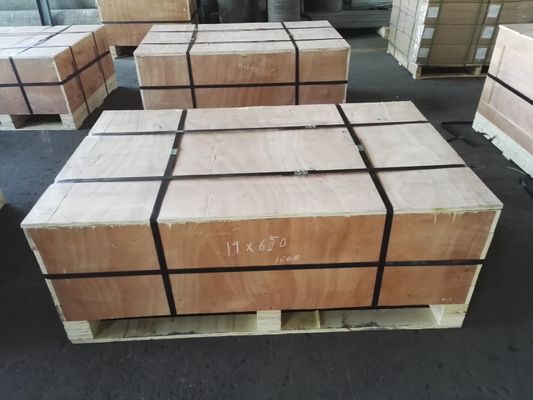

| Packaging Details: | in carton or in wood case on pallet |
| Delivery Time: | 14 days |
| Payment Terms: | T/T , Paypal , West Union |
| Supply Ability: | 20mt per week |
|
Detail Information |
|||
| Anode: | Backfilled , Cable , Cotton Bag | Grade: | HP AZ Grade |
|---|---|---|---|
| Pack: | Anode + Cable + Backfill | Bare Anode: | 9 Lbs 17 Lbs 32 Lbs |
| High Light: | sacrificial anode protection,magnesium sacrificial anode |
||
Product Description
Above bare Mg anodes can be supplied after being prepackaged. The bare Mg anodes will be assembled with cable and sealed with epoxy resin, and packaged in a calico bag.
Typical cables type (insulation./ sheath ) are: PVC/PVC, XLPE/PVC, HMWPE with cable size: 6mmsq, 10mmsq, 16mmsq.
| Backfill Element | |
| Gypsum | 75% |
| Bentonite | 20% |
| Sodium Sulphate | 5% |
| Item No. | Part No. |
Diameter (mm) |
Length (mm) |
Weight (kg) |
| 1 | MG-5D2 | 127 | 450 | 8.2 |
| 2 | MG-9D2 | 140 | 690 | 16 |
| 3 | MG-9D2-1 | 130 | 810 | 16 |
| 4 | MG-20D2 | 140 | 1650 | 38 |
| 5 | MG-5D3 | 160 | 300 | 9.0 |
| 6 | MG-9D3 | 160 | 550 | 16 |
| 7 | MG-17D3 | 160 | 780 | 22 |
| 8 | MG-35D5 | 200 | 680 | 30 |
| 9 | MG-48D5 | 205 | 960 | 45 |
| 10 | MG-R50 | 160 | 480 | 13.5 |
| 11 | MG-R77 | 175 | 640 | 22 |
| 12 | MG-R100 | 175 | 710 | 25 |
| 13 | MG-R145 | 200 | 650 | 30 |
| 14 | MG-R273 | 175 | 1650 | 58 |
| 15 | MG-5S3 | 160 | 350 | 10 |
| 16 | MG-9S3 | 160 | 550 | 16 |
| 17 | MG-17S3 | 160 | 800 | 23 |
| 18 | MG-32S5 | 195 | 700 | 30 |
| 19 | MG-48S5 | 200 | 1000 | 45 |
