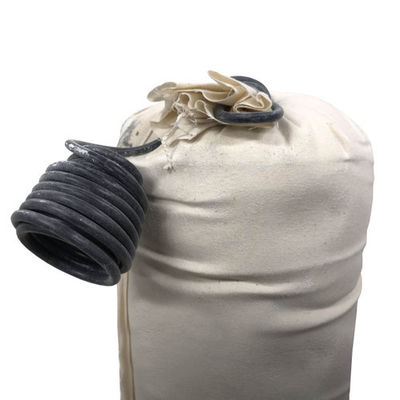

Cathodic 17 lb. H1 A1 Magnesium Anode 10 ft. TW Lead Wire
Product Details:
| Brand Name: | High Broad |
| Model Number: | MGC001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | USD 5~10/kg |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000t/month |
|
Detail Information |
|||
| High Light: | H1 A1 Magnesium Anode,Magnesium Anode 10ft,Cathodic Magnesium Anode |
||
|---|---|---|---|
Product Description
Cathodic 17 lb. H1 A1 Magnesium Anode, 10 ft. TW Lead Wire
Magnesium Anodes used in cathodic protection systems in low resistivity soil conditions. Backfill components are carefully sourced and then mixed at the factory to ensure correct composition. Includes 10 feet of 12# TW solid copper lead wire.
FEATURES:
- TW Insulated Solid Copper Wire is designed, rated, and the best option for direct burial
- Wire is coiled using a double layered taper, therefore it doesn't tangle when unwound
- Top quality epoxy used for potting compound to seal the internal anode wire connection
- Magnesium is cast only by hand-selected foundries and is third party tested
- Backfill components are carefully sourced and then mixed at the factory to ensure correct composition
- Specifically engineered cotton bag resists tearing when carrying the anode
- Packaged by dedicated professionals, who understand the importance of a tightly packed, uniform, anode
SPECIFICATION:
- Bag Material: Engineered Cotton with Polyester Thread and Proprietary Stitching
- Wire: 10 ft. #12 TW Solid Copper Lead Wire
- Minimum Open Circuit Potential (Cu/Cu sulfate electrode): -1.5v
- Minimum Current Efficiency: 50%
- 3rd Party Laboratory: Anode Evaluations
- Bare Anode Weight: 17 lbs.
- Packaged Anode Weight: 45 lbs.
- Packaged Anode Diameter: 5 in.
- Packaged Anode Length: 28 in.
- Box: Extra Thick, Heavy Duty
- Bag Tie: Steel, Industrial Grade
- Potting Compound: Epoxy
COMPOSITION:
| Anode Composition | Grade A/III-% |
|---|---|
| Aluminum (Al) | 5.3 minimum, 6.7 maximum |
| Copper (Cu) | 0.02 maximum |
| Iron (Fe) | 0.03 maximum |
| Manganese (Mn) | 0.15 minimum |
| Nickel (Ni) | 0.002 maximum |
| Silicon (Si) | 0.01 maximum |
| Zinc | 2.5 minimum, 3.5 maximum |
| Other Impurities | 0.03 maximum |
| Magnesium | Remainder |
| Backfill Composition | Specifically Sourced |
|---|---|
| Hydrated Gypsum | 75% |
| Bentonite | 20% |
| Anhydrous Sodium Sulfate | 5% |
