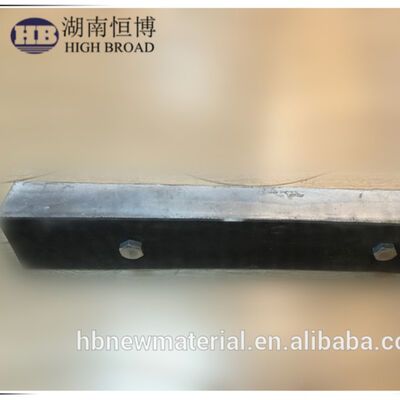

Best Selling Magnesium Aluminum Zinc Alloy Cast Sacrificial Anode for Cathodic Protection in Ship Equipment
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | High broad sacrificial anodes |
| Model Number: | Galvanic anode for Cathodic protection |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Chemical Composition: | Al-Zn-In Series Alloy | Material: | Aluminum Alloy |
|---|---|---|---|
| Shape: | Ballast Tank Anodes | Open Circuit Potential: | -1.18-1.10V,Cu/CuSO4 |
| Closed Circuit Potential: | -1.12--1.05V,Cu/CuSO4 | Actual Capacitance: | ≥2400A*h/kg |
| Current Efficiency: | ≥55% | Weight Range: | 1.2-310.0Kg |
| Dimensions Range: | 180x70x35mm To 2300x240x230mm | Alloy Element Zn: | 2.5-7.0% |
| Alloy Element In: | 0.018-0.05% | Alloy Element Cd: | 0.15-0.60% |
| Alloy Element Sn: | 0.018-0.035% | Alloy Element Mg: | 0.5-1.5% |
| Alloy Element Ti: | - | ||
| Highlight: | Al-Zn-In Series Alloy Sacrificial Anode,Cathodic Protection Magnesium Anode,Ship Equipment Aluminum Zinc Alloy Anode |
||
Product Description
Best Selling Magnesium Aluminum Zinc Alloy Cast Sacrificial Anode
HighBroad aluminum anodes can be manufactured with a wide variety of core configurations to accommodate different anode specifications and applications. Whether your requirements are for new structures or retrofitting existing platforms, HighBroad can manufacture any anode to your specifications.
Our commitment to on-time deliveries and quality workmanship is supported by our competent staff with many years of experience in manufacturing all types of anodes.
HighBroad's laboratory is fully equipped with state-of-the-art equipment. All products undergo testing and inspection prior to shipping, with chemical analyses performed on each heat prior to casting.
Aluminum Alloy Sacrificial Anodes provide simple and economical performance under various environmental conditions. After proper installation, aluminum anodes perform efficiently and continuously without requiring attention for cathodic protection systems.
With their excellent performance characteristics, these anodes are widely used in cathodic protection systems for seawater, pipelines, offshore structures, ship hulls, tanks, boilers, piers, and other applications.
Chemical Composition
| Shop sign | Alloy element | Impurity element, less than |
|---|---|---|
| Al-Zn-In-Cd | Zn: 2.5-4.5, In: 0.018-0.05, Cd: 0.15-0.60, Al: remainder | Sn: -, Mg: -, Ti: -, Si: 0.10, Fe: 0.15, Cu: 0.01 |
| Al-Zn-In-Sn | Zn: 2.2-5.2, In: 0.02-0.045, Sn: 0.018-0.035, Al: remainder | Cd: -, Mg: -, Ti: -, Si: 0.10, Fe: 0.15, Cu: 0.01 |
| Al-Zn-In-Si | Zn: 5.5-7.0, In: 0.025-0.035, Si: 0.10, Al: remainder | Cd: -, Sn: -, Mg: -, Ti: -, Fe: 0.15, Cu: 0.01 |
| Al-Zn-In-Sn-Mg | Zn: 2.5-4.0, In: 0.02-0.05, Sn: 0.025-0.075, Mg: 0.5-1, Al: remainder | Cd: -, Ti: -, Si: 0.10, Fe: 0.15, Cu: 0.01 |
| Al-Zn-In-Mg-Ti | Zn: 4.0-7.0, In: 0.02-0.05, Mg: 0.5-1.5, Al: remainder | Cd: -, Sn: -, Si: 0.10, Fe: 0.15, Cu: 0.01 |
Electrochemical Property
| Shop sign | Open circuit potential (-V,Cu/CuSO4) | Closed circuit potential (-V,Cu/CuSO4) | Actual capacitance (A*h/kg) | Current efficiency (%) |
|---|---|---|---|---|
| Al 1 | -1.18-1.10 | -1.12--1.05 | ≥2400 | ≥55 |
| Al 2 | -1.18-1.10 | -1.12--1.05 | ≥2600 | ≥90 |
Also produced according to client requirements.
Packaging & Delivery
| Packaging Details: | Plywood case or plywood pallet with waterproof packing, seaworthy for transportation |
| Delivery Detail: | As required |
Product Specifications
1. Models and Specifications for Inside Storage Tanks
| Type | Specification (mm) L x (Top Width + Bottom Width) x H | Weight (Kg) |
|---|---|---|
| AC-1 | 750 x (115+135) x 130 | 35.0 |
| AC-2 | 500 x (115+135) x 130 | 23.0 |
| AC-3 | 500 x (105+135) x 100 | 16.0 |
| AC-4 | 300 x (105+135) x 100 | 10.0 |

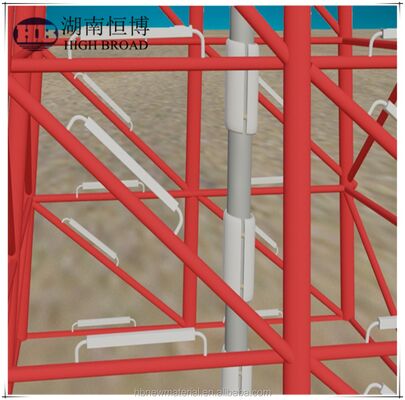

2. Models and Specifications for Harbor Installations and Offshore Projects
| Type | Specification (mm) L x (Top Width + Bottom Width) x H | Weight (Kg) |
|---|---|---|
| AI-1 | 2300 x (220+240) x 230 | 310.0 |
| AI-2 | 1600 x (200+210) x 220 | 190.0 |
| AI-3 | 1500 x (170+200) x 180 | 130.0 |
| AI-4 | 900 x (150+170) x 160 | 58.0 |
| AI-5 | 1500 x (148+178) x 170 | 120.0 |
| AI-6 | 850 x (180+220) x 180 | 85.0 |
| AI-7 | 800 x (200+280) x 150 | 80.0 |
| AI-8 | 700 x (160+220) x 180 | 72.5 |
| AI-9 | 1250 x (115+135) x 130 | 56.0 |
| AI-10 | 1000 x (115+135) x 130 | 46.0 |
| AI-11 | 750 x (115+135) x 130 | 35.0 |
| AI-12 | 500 x (115+135) x 130 | 23.0 |

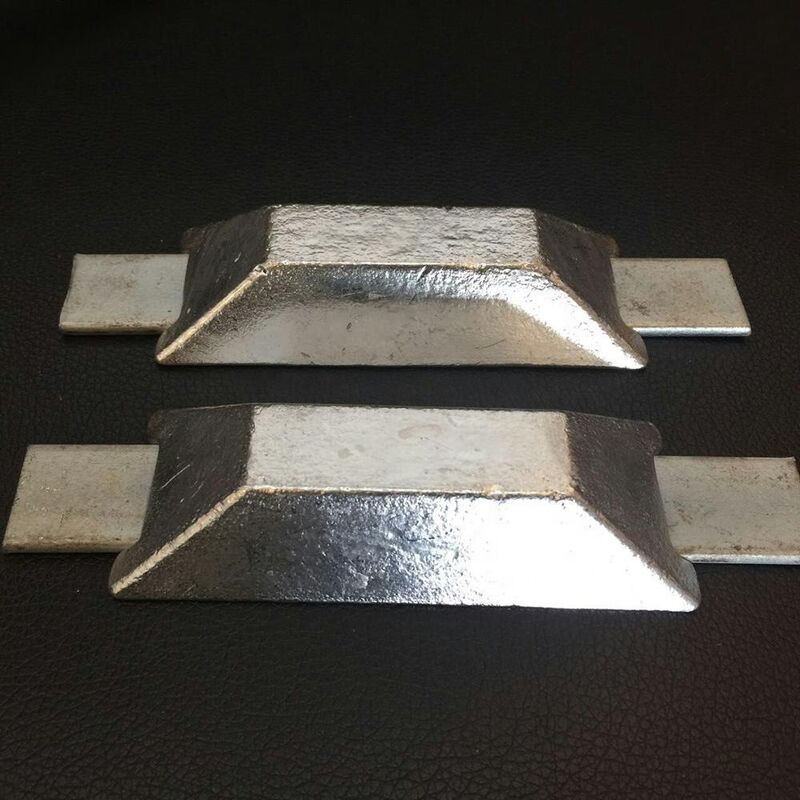

3. Models and Specifications for Ship Ballast Tank
| Type | Specification (mm) L x (Top Width + Bottom Width) x H | Weight (Kg) |
|---|---|---|
| AT-1 | 500 x (115+135) x 130 | 23.0 |
| AT-2 | 1500 x (65+75) x 70 | 21.5 |
| AT-3 | 500 x (110+130) x 120 | 20.0 |
| AT-4 | 1000 x (58.5+78.5) x 68 | 13.2 |
| AT-5 | 800 x (56+74) x 65 | 10.0 |
| AT-6 | 1150 x (48+54) x 51 | 9.0 |
| AT-7 | 250 x (80+100) x 85 | 5.0 |
| AT-8 | 200 x (70+90) x 70 | 3.0 |
4. Models and Specifications for Tape Sacrificial Anodes in Seawater Cooling System
| Type | Specification (mm) L x (Top Width + Bottom Width) x H | Weight (Kg) |
|---|---|---|
| AE-1 | 1200 x (200+280) x 150 | 120.0 |
| AE-2 | 800 x (200+280) x 150 | 80.0 |
| AE-3 | 1000 x (115+135) x 130 | 46.0 |
| AE-4 | 500 x (115+135) x 130 | 23.0 |
| AE-5 | 1000 x (80+100) x 80 | 20.0 |
| AE-6 | 500 x (105+135) x 100 | 16.0 |
| AE-7 | 500 x (80+100) x 80 | 10.0 |
| AE-8 | 400 x (110+120) x 50 | 7.0 |
| AE-9 | 300 x (140+160) x 40 | 5.0 |
| AE-10 | 200 x (90+110) x 40 | 3.0 |

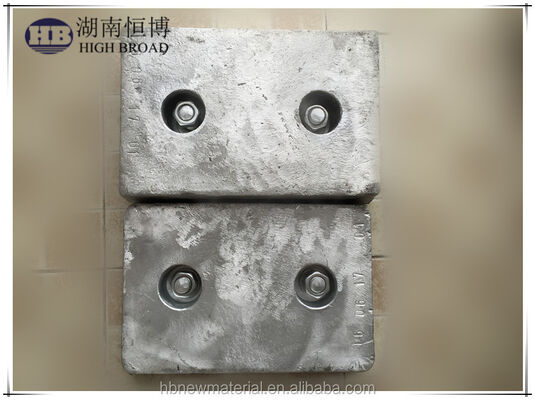

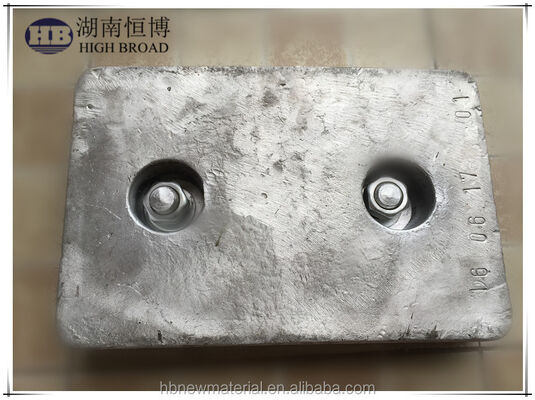

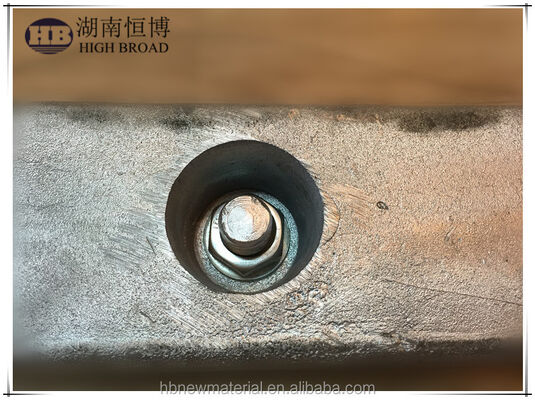

5. Models and Specifications for Ship Hull Applications
| Type | Specification (mm) L x W x H | Weight (Kg) |
|---|---|---|
| AH-1 | 800 x 140 x 60 | 17.0 |
| AH-2 | 800 x 140 x 50 | 15.0 |
| AH-3 | 800 x 140 x 40 | 12.0 |
| AH-4 | 600 x 120 x 50 | 10.0 |
| AH-5 | 400 x 120 x 50 | 6.5 |
| AH-6 | 500 x 100 x 40 | 5.5 |
| AH-7 | 400 x 100 x 40 | 4.5 |
| AH-8 | 300 x 100 x 40 | 3.5 |
| AH-9 | 250 x 100 x 40 | 2.5 |
| AH-10 | 180 x 70 x 35 | 1.2 |
| AH-11 | 300 x 150 x 50 double iron feet | 5.8 |
| AH-12 | 300 x 150 x 40 double iron feet | 4.6 |
| AH-13 | 300 x 150 x 50 bolt | 5.8 |
| AH-14 | 300 x 150 x 40 bolt | 4.8 |
6. Models and Specifications for Round-Disk Sacrificial Anodes in Seawater Cooling System
| Type | Specification (mm) Diameter x High | Weight (Kg) |
|---|---|---|
| AE-11 | 300 x 60 | 11.5 |
| AE-12 | 360 x 40 | 9.0 |
| AE-13 | 300 x 40 | 7.5 |
| AE-14 | 200 x 50 | 4.0 |
| AE-15 | 180 x 50 | 3.5 |
| AE-16 | 120 x 100 | 2.5 |
7. Models and Specifications for Bracelet Aluminum Alloy Anodes
| Type | Specification (mm) Diameter x Width x Thickness x Clearance | Weight (Kg) |
|---|---|---|
| AB-1 | 1020 x 200 x 35 x 51 | 68.0 |
| AB-2 | 819 x 60 x 30 x 51 | 13.0 |
| AB-3 | 624 x 80 x 30 x 51 | 17.0 |
| AB-4 | 513 x 100 x 30 x 51 | 17.0 |
| AB-5 | 487 x 200 x 45 x 51 | 41.0 |
| AB-6 | 470 x 480 x 25 x 51 | 50.0 |
| AB-7 | 436 x 480 x 38 x 51 | 70.0 |
| AB-8 | 420 x 413 x 45 x 51 | 69.0 |
| AB-9 | 385 x 150 x 59 x 51 | 32.0 |
| AB-10 | 335 x 505 x 38 x 51 | 56.0 |
| AB-11 | 280 x 250 x 45 x 51 | 29.0 |
| AB-12 | 252 x 250 x 45 x 51 | 26.0 |
Company Information
Our company, China Hunan High Broad, was established in 2006. We are dedicated to researching, developing, producing, and selling new materials. Our sales office is located in Changsha, China, with manufacturing bases in Henan and Shanxi provinces.
With over 5,000 metric tons annual capacity, we produce magnesium base master alloy, magnesium anodes, aluminum anodes, zinc anodes, aluminum base master alloy, rare earth master alloy, zinc base master alloy, magnesium alloy billet, advanced industrial ceramics, and other new materials. These products are widely applied in high-tech fields including aerospace, machine manufacturing, and telecommunications.
Our products are accepted and recognized by clients worldwide including Europe, America, and East Asia.
Our technical team possesses leading design and R&D capabilities, enabling us to supply high-quality, stable products and provide technical solutions during your production and processing.
We participate in R&D projects with colleges and universities and maintain strategic cooperation with companies in China and overseas.
We are confident we are the top choice to become your best partner.
