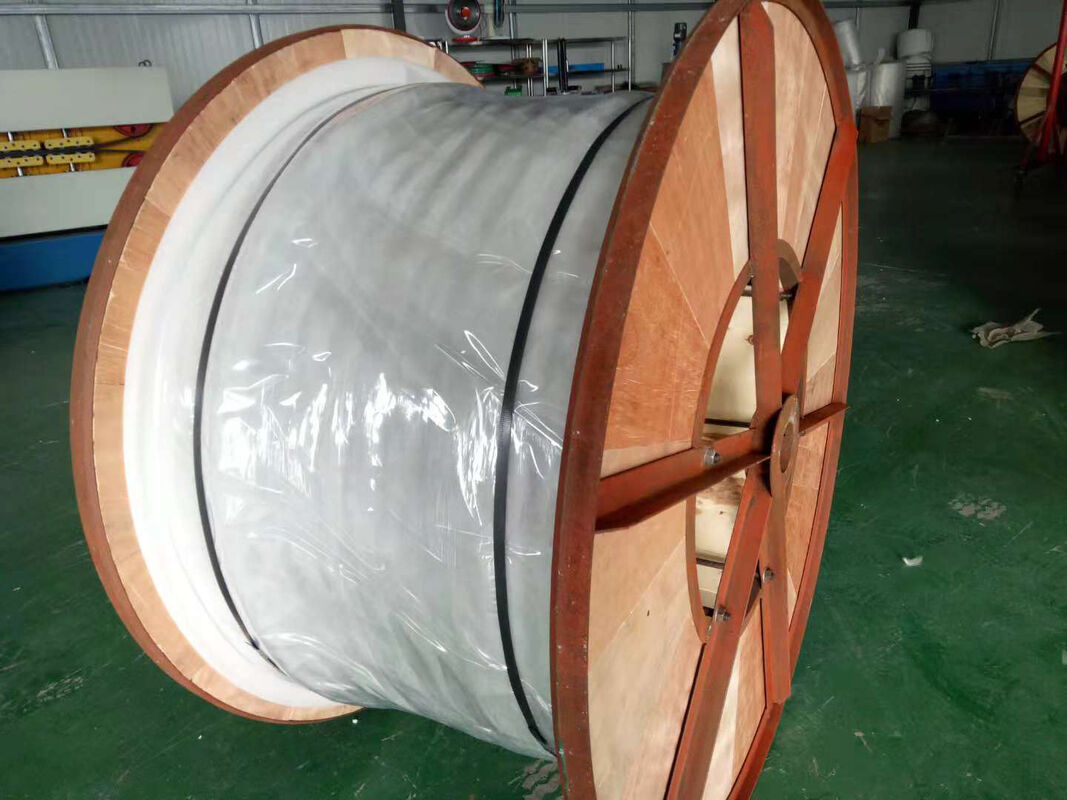

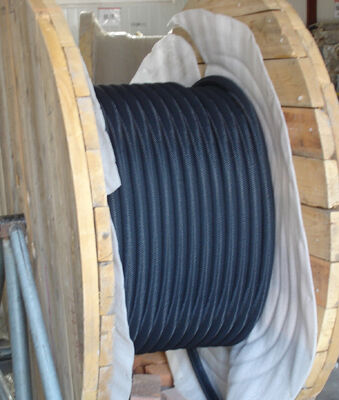

Pull Through Rated MMO Flexible Linear Anode for Horizontal Directional Drilling Pipeline Crossing CP
Product Details:
| Place of Origin: | China |
| Brand Name: | High Broad or OEM |
| Certification: | ISO 9001, Pull Test Certified |
| Model Number: | MMO-HDD-006 |
|
Detail Information |
|||
| Anode Type: | HDD Pull-Through Rated MMO Linear | Tensile Rating: | > 5kN Continuous Pull |
|---|---|---|---|
| Minimum Bend Radius: | 50 Meters | Jacket: | Multi-Layer Reinforced, Abrasion Resistant |
| Connection: | Over-Molded Strain Relief Splices | Installation: | Simultaneous Pullback With Carrier Pipe |
| Highlight: | HDD Pull Through MMO Anode,Directional Drill Pipeline CP,River Crossing Flexible Anode |
||
Product Description
HDD-Rated MMO Flexible Linear Anode
Standard linear anodes cannot survive horizontal directional drilling installation. Our HDD-rated anode is engineered from the ground up for the extreme mechanical demands of pull-through operations — river crossings, highway underpasses, and urban infrastructure projects.
HDD-Specific Engineering
Reinforced Jacket: Multi-layer construction with internal friction-reducing layer to minimize pull force and external abrasion-resistant layer to withstand bore wall contact. Tensile rating exceeds 5kN continuous pull force.
Flexible Core Design: Stranded copper conductor with enhanced flexibility accommodates bore path curvature radii as tight as 50 meters without conductor damage or insulation cracking.
Connection Reinforcement: Splice connections are over-molded with additional mechanical strain relief to survive the tension spikes that occur during pipe pullback operations.
Installation Process
Anode is attached to the pipeline and pulled through the bore hole simultaneously with the carrier pipe. Once in position, the anode provides continuous CP along the entire HDD section — protection where traditional groundbed anodes cannot reach.
Applications
- River and waterway pipeline crossings
- Highway and railway underpass CP
- Urban infrastructure HDD installations
- Environmentally sensitive area crossings
